JEEP J-2000 GLADIATOR

1962 - 1969

PREDECESSOR : 473 Willys Jeep Truck
SUB-MODEL : SJ Wagoneer

ASSEMBLY: Toledo, OH, USA
UNITS PRODUCED: Unknown

The J-2000 Gladiator was the first SJ model pickup, and it shares a front end and grille with the SJ Wagoneer. It was available with a 7-foot or 8-foot standard box bed, as well as a flat bed. It was the successor to the 473 Willys Jeep Truck, and the first Gladiator jeep. The Gladiator nameplate would continue with seeral models, and is still in use today.

J-2000 GLADIATOR SPECS

MAIN SPECS
OVERALL LENGTH (OL): 201.0
OVERALL WIDTH (OW): 80.5
OVERALL HEIGHT (OH): 68.3
WHEELBASE (WB): 120.0
TRACK WIDTH (TR): 64.3
CURB WEIGHT (CW): 2,350 lbs

CHASSIS SPECS
GROUND CLEARANCE (GC): 9.2
APPROACH ANGLE (AA): 38°
BREAKOVER ANGLE (BA): 18°
DEPARTURE ANGLE (DA): 23°
SUSPENSION TYPE (SU): Front Coil Suspension, Rear Leaf Spring Suspension

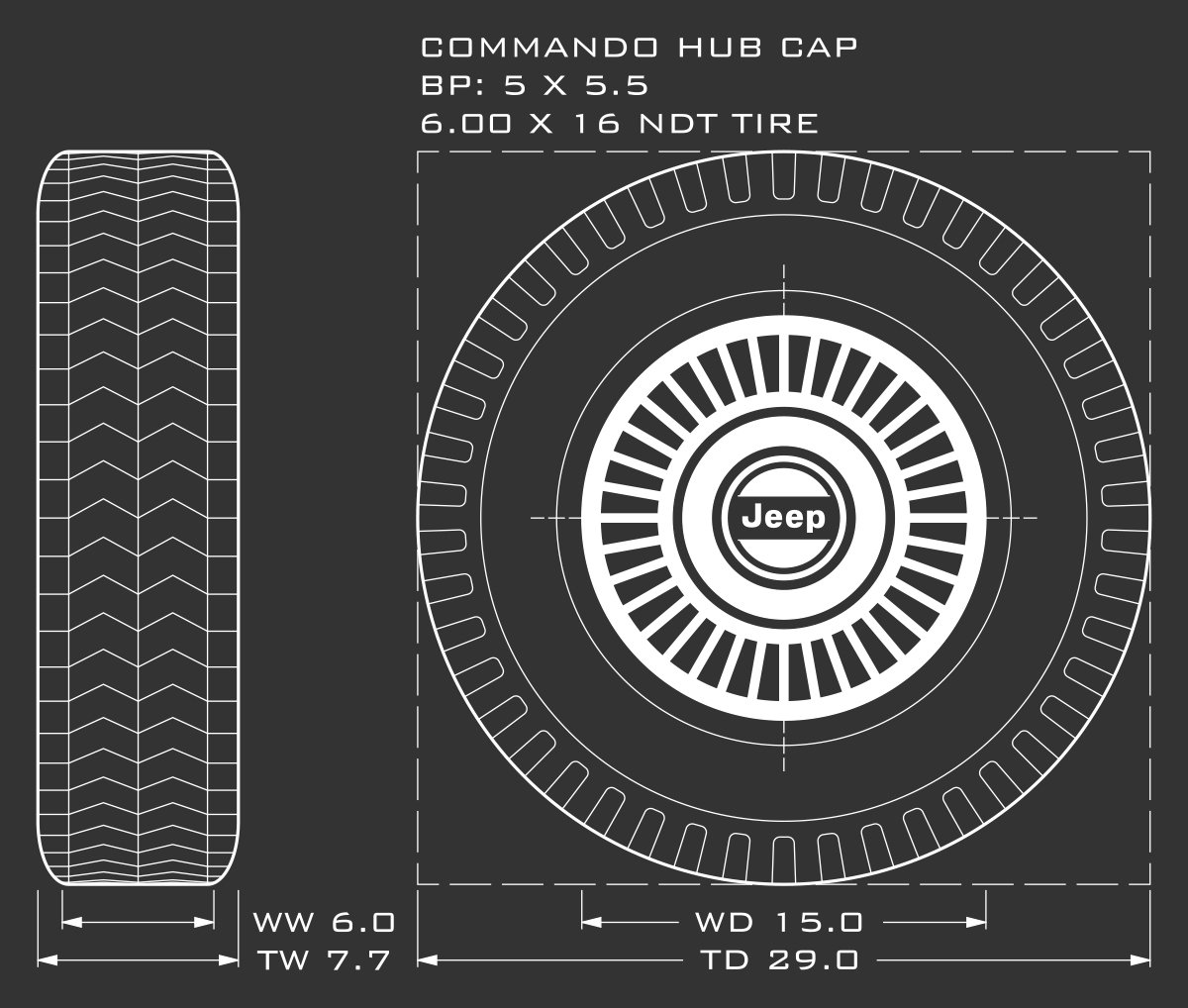

WHEEL SPECS
WHEEL NAME: Commando Wheel with Hub Cap
WHEEL DIAMETER (WD): 15.0
WHEEL WIDTH (WW): 6.0
BOLT PATTERN (BP): 5 x 5.5
TIRE WIDTH (TW): 7.7
TIRE DIAMETER (TD): 29.0
SPARE LOCATION: Spare Under Bed

All specifications refer to original stock versions

All dimensions shown in inches

Drawn by Christopher James Botham
